What is Car Chassis? Definition, Types, Function, Works


A car or any vehicle’s chassis is an important component. An automobile’s chassis can be thought of as the skeleton of the car’s structure.

It is critical to examine the chassis of a vehicle since it is one of the most vital components. Metal frames are capable of carrying a full load of a car, whether in a static or dynamic state.

What is Car Chassis? Definition

Car or Vehicle Chasis Basics

The Chassis is the under part of an engine vehicle comprising the outline on which the body is mounted. Rolling chassis is known as when the chassis incorporates the wheels, motor, transmission, driveshaft, differential, suspension, and the front seats. An engine vehicle’s drive train comprises the parts of the power train barring the motor and transmission.

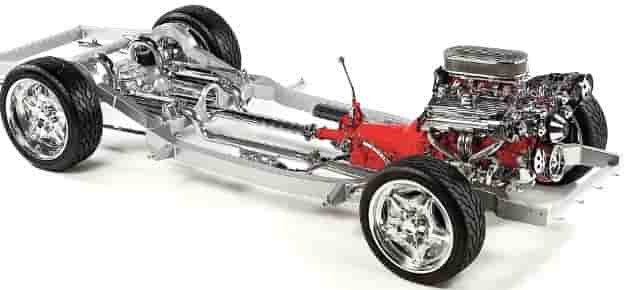

What car chassis vehicle definition types parts works basics

The components after the transmission of the drive chain can alter depending on in case a vehicle is front-wheel, rear-wheel, or four-wheel drive & much more.

Generally speaking, the frame rod is labeled as the backbone of the vehicle and referred to as a member of the frame, allowing some parts to be mounted to it. Chassis is a whole system that includes an engine, transmission system, brakes, axles, and tires. It is important for chassis to support loads, so they are designed to possess adequate strength.

Chassis Definition

A chassis is a framework that holds manmade structures together. An automobile’s chassis supports circuit boards of its system & this can be found under the car, truck, or sport utility vehicle.

  • A chassis of an automobile comprises the frame. Sometimes, it includes the wheels and transmission as well as the driver’s seat. There is no doubt that a car’s chassis is an incredibly important component. Despite this, many drivers are unaware of how important it is. A car’s chassis is, after the engine, the most integral part of any motorized automobile.
  • Besides serving as the vehicle’s frame, it also creates invaluable structural integrity, which prevents the vehicle from collapsing under heavy strain.
  • A vehicle outline is the key portion of that car. It is additionally a portion of the chassis. All of the other engine vehicle components are joined to the outline in one way or the other. The chassis and the outline are too affixed together.

Don’t be Confused with Frame

A vehicle’s chassis is its primary support structure. Hence, it is also referred to as the Frame. The chassis can be compared to the skeleton of a living organism. All vehicles have a chassis frame, whether they are two-wheelers, cars, or trucks. However, the shape of this frame varies according to the types of cars or vehicles.

It is common to use the word chassis interchangeably with the frame, but technically the chassis is the part of the frame that carries the weight of the vehicle. The horizontal section of the frame holds all the useful parts of the car.

Construction Process of Car Chassis

Cross members are connected with longitudinal members by way of rivets or bolts. The longitudinal or side members are then connected with the cross members. Chassis builders use five to six cross members to achieve good strength and rigidity. Sometimes diagonal cross bracing is also used for torsion rigidity.

Upswept longitudinal members provide the axle with space to move forward and backward. That also helps to keep the frame height low and provides a tighter steering lock through a smaller turning circle by providing a lower frame height.

There are brackets in the frame that support the body as well as allow the mounting of different parts such as suspension springs, engines, and brake shafts. The front overhang extends over the front axle & a rear overhang that extends beyond the rear axle.

The engine, clutch, and transmission are attached utilizing rubber blocks and bolted together into one assembly on this frame. All these steel members used in the chassis frame are made of pressed steel, which isolates the engine from road shocks and vibrations.

Functions of Car Chassis

In recent years there has been an increase in the need for chassis frames to be torsionally rigid. While there have been considerable gains, these have largely been attained by adding materials rather than by improving the design of the structure. That has led to a serious problem with chassis weight to the point where special heavy frames are used for open-body types with an acute need for a stiff chassis.

  • It supports the vehicle’s body or bears its weight.
  • Place various aggregates of vehicles in a space where they can be mounted.
  • It ensures that various vehicle systems such as the engine, and transmission, are supported.
  • It assists in transporting passengers and luggage.
  • Has the ability to withstand the effects of poor road conditions.
  • Holds up well when the vehicle is braking and accelerating.

Different Parts of Car Chassis

Semi Forward Chassis

The engine here is mounted to the chassis so half is located in the driver’s cabin and the other half is in front of the driver’s cabin. In this way, one can utilize the portion of the chassis where the engine is located inside the driver’s cabin.

Centre Engine Chassis

In addition to being called mid-engine chassis, it is also called four-wheel drive. A mid-engine chassis has the engine mounted between two wheels. Moreover, this arrangement increases wheel grip since the car’s weight shifts under acceleration, and it allows a curved body for greater aerodynamic efficiency.

Front Cross Member

This component underpins the motor, suspension, controlling wheel, etc., and plays a part in retaining stuns from the street surface and vitality of collision impacts. It stifles torsion of the vehicle body amid driving and makes strides in ride consolation and driving stability. Optimizing the structure and cross-sections, the weight has been decreased by roughly 17% whereas keeping up the quality and inflexibility of the current models.

Traditional Chassis

The driver of such a chassis is seated quite far from the front axle due to the engine is positioned in front of the cabin. As a result, the driver cannot see the road directly in front of the tires. All the body and all the components are installed on the structure’s longitudinal members or side members, which are connected to four or five cross-members.

Rear Engine Chassis

In low-floor buses, the engine’s center of gravity is behind the rear wheels. Because of this, the remaining space can be used for passengers or luggage.

Rear Cross Member

This component underpins and interfaces the undercarriage and drive framework parts on the rise with the vehicle body. The most part of these components is to decide the tire positions and to assimilate stuns from the street surface. If you want to pursue the perfect system inside the limits of the accessible space, weight lessens by roughly 20% compared to the ordinary models, without compromising quality and inflexibility.

You can rise cross individuals of distinctive shapes, such as for 2WD or 4WD, which can be fabricated together in an adaptable generation line.

Full Forward Chassis

The engine sits inside the driver’s cabin so that the driver can see the whole road just in front of their tires in this chassis. It is also known as the bus chassis.

Torsion Beam Axle

This component is composed of a bar and cleared out and right arms interfacing the body and the tires. It is planned to endure the torsion fundamental for driving, and it assimilates stuns from the street surface. It has fewer parts compared to other sorts of suspensions, and thus it is lighter in weight and more cost-effective.

Another advantage, among other things, is that it can protect more space for the fuel tank and cargo space. The pillar is changed from the ordinary U-shaped sheet metal sort to the smashed tube sort, in which the pipe is pulverized. It fulfills the specified execution in spite of its lean property and little cross-section, contributing to a weight decrease of around 20%.

Integral Chassis

Due to the lack of a longer frame, it is cheaper although it is difficult to repair. It is also known as frameless chassis. The body shell and the underbody are welded together. This method decreases the overall weight.

Front & Rear Lower Arm

The main part of this component is to decide the tire positions and points, back the input from the street surface, and hold fundamental utilitarian components. Components that are customarily made by implying manufacturing and casting are optimized by sheet metal structure utilizing high‐tensile materials to diminish weight and take a toll while expanding strength.

Semi Integral Chassis

The semi-integral chassis has the engine mounted on a frame, while the rest of the chassis does not have a frame. That is so that only the front portion of the chassis can be repaired if the vehicle suffers an accident.

Suspension

Suspension is usually one of the most components of the chassis. The steadiness of the car when cornering depends on the quality and design features of this portion. Too, the suspension is created taking under consideration security necessities in accordance with the desires of the advanced driver in terms of comfort.

Since the creation of the primary car, and to this day, the suspension plan is continually being progressed, due to which there’s a tremendous assortment of all sorts of suspension plans within the car world. The most contrasts between all these structures are within the strategy of mounting the machine bolster wheels on one axle.

Independent Suspension

In independent suspension, the wheels mounted on the axles are not inflexibly associated with each other. As a result, their position relative to the level does not influence each other. You guarantee the greatest footing on the street then a transverse stabilizer is introduced on this suspension. This sort of suspension & its more complex structure gives more consolation and is lighter in weight compared to the subordinate suspension. Much obliged to this, cutting-edge cars are getting more energetic and as comfortable as conceivable. The impediments incorporate always alter wheel alignment.

Dependent Suspension

Usually, they exceptionally begin with a sort of car suspension. In this case, the wheels of one pivot are inflexibly associated with each other. The focal points of such a suspension incorporate the most extreme attachment of the wheels to the street surface. It is usually particularly critical when the car enters a turn on a smooth surface. Due to the unbending obsession, each wheel remains upright.

The disadvantage of this sort of suspension, at that point when driving over bumps, inflexibly associated wheels don’t guarantee the smooth running of the car. For illustration, one wheel runs over a bump and changes the slant of the complete hub. In present-day cars, the completely dependent front suspension has as of now been surrendered.

The dependent structure is introduced solely on the raised hub, in any case of whether it could be driving or driven pivot. In case it may be a drive hub, at that point, it is spoken to by a raised pivot, which gives an unbending association between both wheels. The driven pivot employments a crossbeam or torsion bar.

Diagram of Car Chassis

Particularly for special heavy vehicles, the development of the chassis and frame is one of the most important stages in the design process. Starting with the analysis of load cases is the starting point for designing a chassis for a vehicle.

Upward & downward loads at each axle apply at the centerlines of the axle when the vehicle body applies to a moment. As a result, torsion moment can load on the longitudinal x-axis as it combines torsion loads and bending.

Centrifugal forces and aft loading that generates when the inertia forces accelerate and decelerate. When the tire is grounded contact patch, then lateral loading generates.

How Does Chassis Works?

A car’s chassis is its anchoring system for all of its key components, such as its suspension, wheels, and body. Unlike popular belief, the painted body covering the car’s exterior is not an integral part of the chassis, but is rather a component that depends on it to function. That is why it is so important to ensure that the chassis of your car is structurally sound every six months so that both the car and its driver are safe.

A vehicle’s chassis functions as a fifth spring in your suspension when it flexes. This flexing of the chassis can cause a vehicle to store and release energy stored in the sprung chassis at inconvenient times.

Efficiency of Chassis

These days, due to the worldwide warming questions related to CO₂ outflows, numerous countries’ enactment lead car and fuel businesses to seek higher efficiencies in their items. Hence, unused motor technologies and cleaner fills are being created and propelled within the showcase.

Efficiencies on chassis dynamometer tests, in arrange to assess vehicle and fuel contributions. You can utilize one vehicle in full-stack condition at steady speeds to assess the misfortunes of each portion of the framework, such as the wheel, air resistance, and power train. The vehicle vitality packages were decided. So, it was conceivable to evaluate vehicles’ mechanical misfortunes, streamlined misfortunes, and conjointly motor efficiencies.

Your vehicle’s suspension is totally dependent on the Chassis which provides more stability. It ensures that the tires stay in contact with the road surface by minimizing the flex in the chassis.

A vehicle with this kind of problem shows a late steering response and reduced cornering speed on its own without the driver’s consent. As a result of the chassis flexing during cornering, the steering components will change, which can change the sets of toes & provides the vehicle to steer, giving it its own attitude towards the driver.

The suspension alignment changes caused by flex will decrease the vehicle’s speed, thus making the driver responsible for compensating for the steering loss.  The driving experience along with its safety of the driver significantly decreases due to the vehicle’s this kind of nature. There is no better place to reduce vehicle weight than in the chassis.

The chassis of an automobile plays the largest role in protecting its occupants from severe injuries sustained during a car crash. Airbags and other safety features aren’t enough to protect the occupants & the stability of the chassis is what keeps them safe.

Types of Chassis

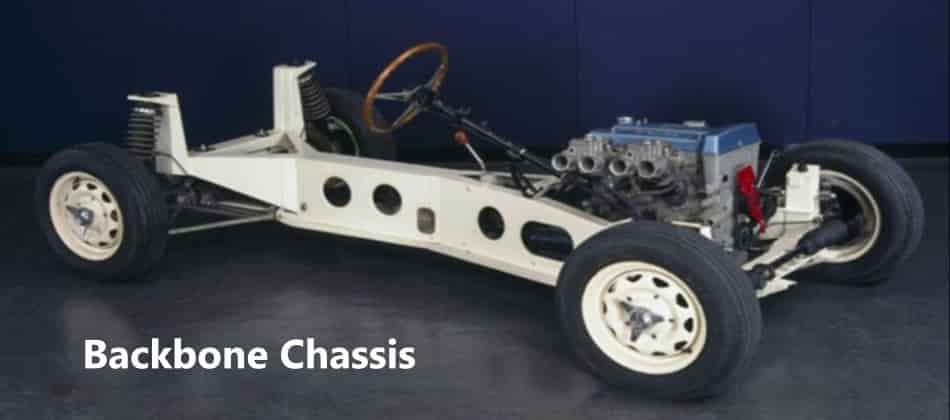

Backbone Chassis

The backbone of a car chassis must consist of at least one substantial central component connecting the front and rear of the frame. In the backbone chassis, the driveshaft is protected from damage by a rectangular cross-section cylindrical tube & which also makes it difficult to repair. It is relatively expensive to manufacture the backbone chassis.

Such a sort of development permits for distant better; a much better; a higher; a stronger; an improved & a higher association of the axles to the ground. This upgrades the solidness of the car. In the case of off-road, the drive shaft is very safe even on the off chance that the car hits the ground often. The unbending nature is additionally higher and can withstand a lot of pressure.

Disadvantages incorporate trouble in repairing the drive preparation as the whole spine must be opened up. The fabricating takes a toll for the spine chassis is tall which makes the car more expensive.

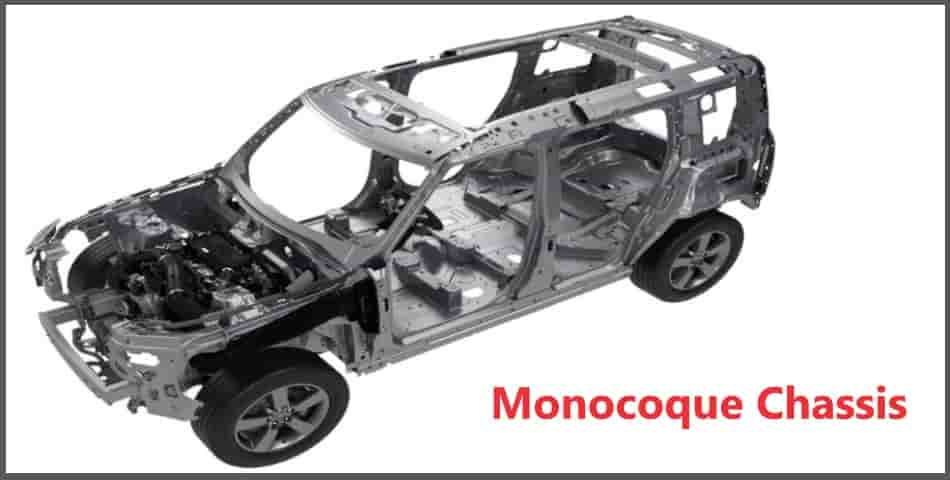

Monocoque Chassis

Automobiles use Monocoque chassis which are designed so that all of the crucial components can be held in one construction. Monocoque derives in French which means a single shell & mass-produced cars are advised to use them since they are more rigid and safer.

Lightweight and compact development permit for the utilization indeed within the littlest of cars. The dealing with qualities are greatly upgraded since the complete vehicle is one compact structure and energetic powers are effortlessly exchanged out to preserve soundness around the corners.

Being used extensively, the fetched fabricating is very moo, which is why it may well be utilized for any car. The security viewpoint of the car and travelers is improved since of a cage-like development. A part of the fold zone can be included in the construction.

Being light, it guarantees higher fuel productivity which makes its utilization in budget cars. Some of the impediments incorporate a need for off-road capabilities because of firm construction. The vehicle doesn’t have as well much deftness since there’s no room for development of components as within the case of step outline chassis & as it were reasonable in the event that delivered in huge quantities.

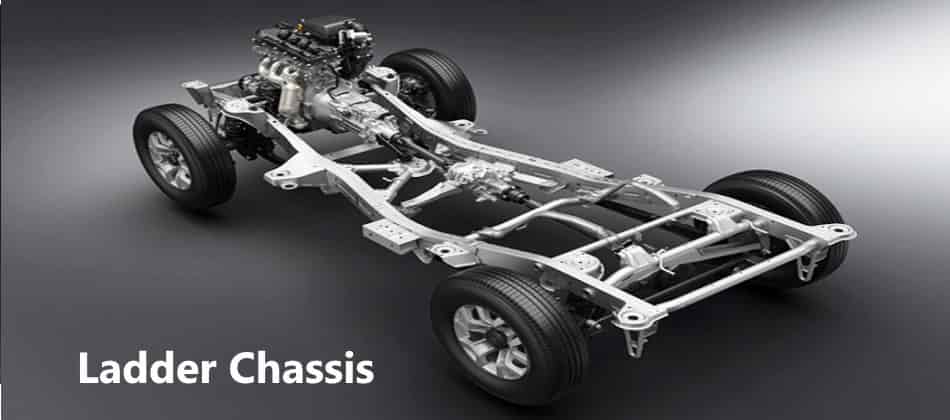

Ladder Chassis

A ladder frame is among the most conventional types. Its construction resembles that of a ladder and consists of two long beams supported by two short beams. Trucks, buses, and light commercial vehicles use them because they are easy to manufacture.

Ladder Chassis development is all-inclusive, in the sense that different sorts of bodies can be joined to one kind of stepping stool frame. Being independently mobile from the body, the off-road capabilities are improved, and as the suspension seems to travel encourage and nearly autonomously of the body. These chassis are fantastically spry and flexible.

The cabins are for the most part calmer since the chassis protects the body and the ride quality is better. Some impediments incorporate destitute dealing due to expanded stature and division from the ground. Heavy components are cruel in that they can’t be utilized in cars and execution vehicles. Ladder Chassis is by and large a bit expensive.

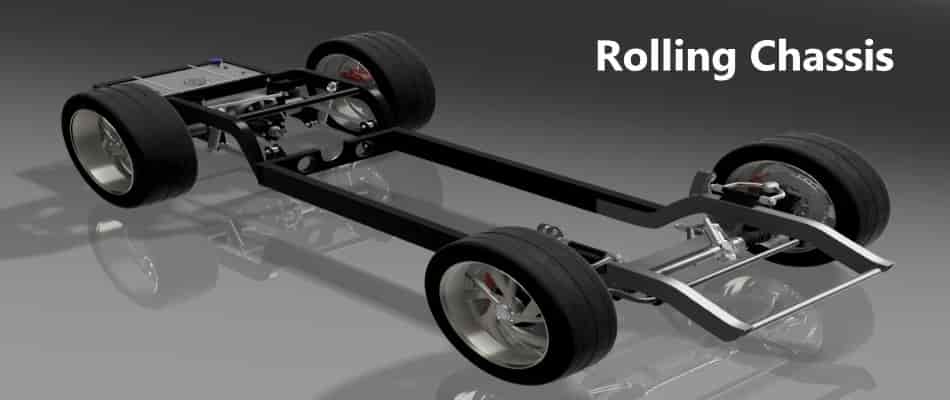

Rolling Chassis

A ready-to-run condition frame and can be legally driven on the road. It includes an engine, transmission, axles, tires, and all the other systems that a vehicle needs.

The frame of this type is usually put into trucks or buses which are transported to the vehicle body builder, where the body is built on top of the frame.

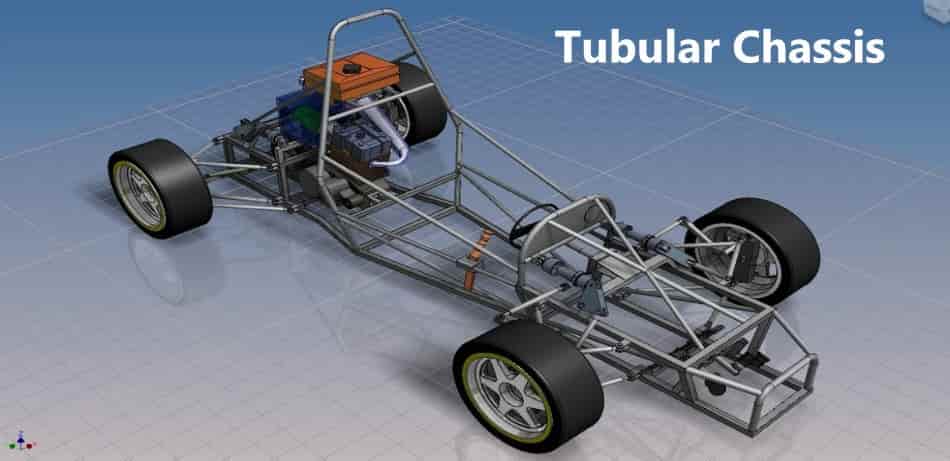

Tubular Chassis

Tubular frames use tubes of various sizes to support each other. These frames are considered unsafe. It is lightweight and rigid at the same time. Another problem with this frame is that it raises the door, making it hard to access. Many racing and all-terrain vehicles use tubular frames as opposed to conventional frames.

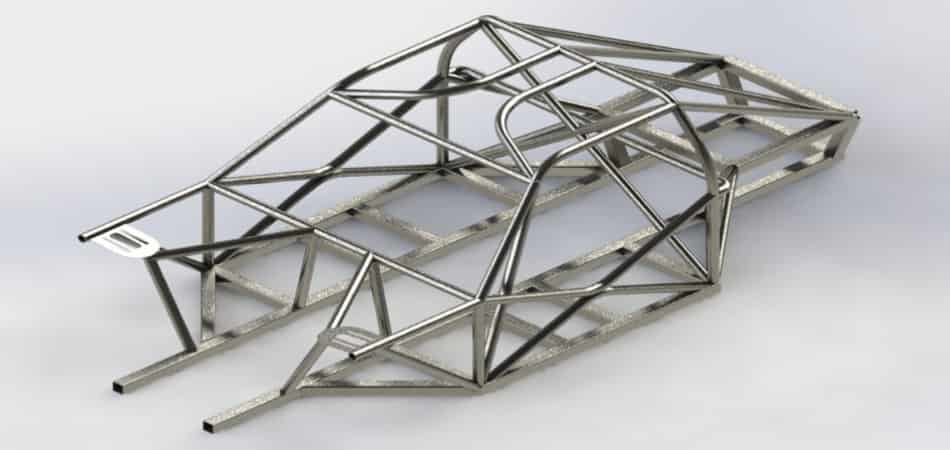

Space Chassis

Even though a space chassis isn’t actually tubular in the true sense of the word, it might be thought of as such. These types of chassis create a strong frame that has some flexibility by wielding together their parts together.

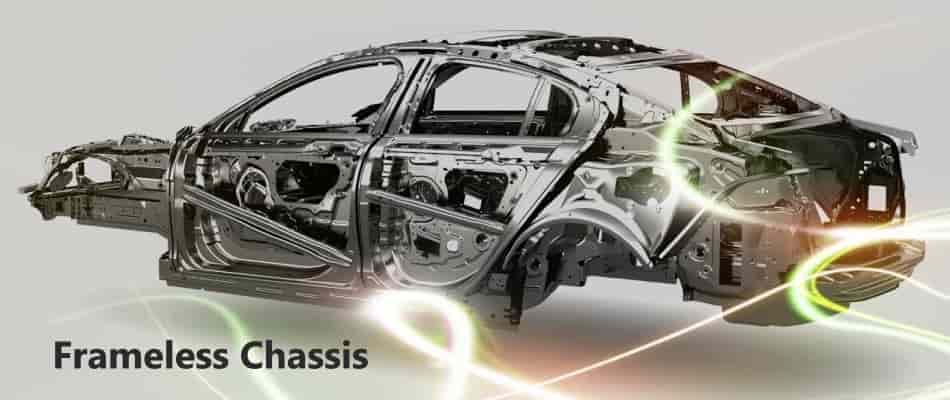

Frameless Chassis

This style of chassis, also known as a frameless chassis or uni-body chassis, does not have a ladder frame and instead uses the body as a frame. It also supports all of the vehicle’s elements and components. In most modern cars, these are employed in almost the same way as conventional chassis.

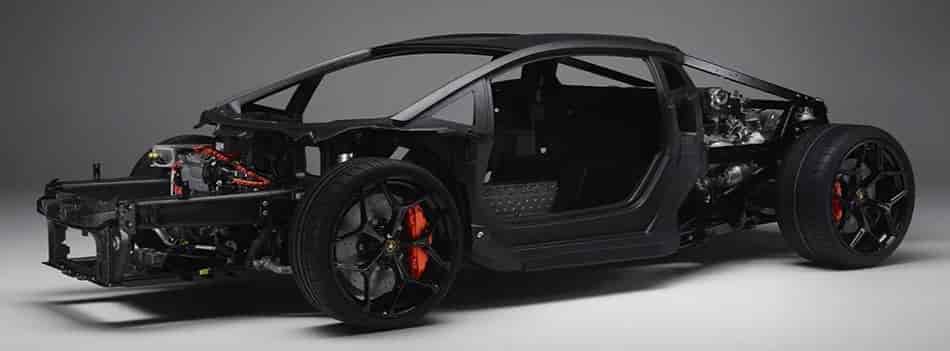

Hybrid Chassis

Hybrid chassis is a chassis that take elements from different types to make the most suitable version for the chassis of that particular car.

Applications of Chassis

An armored battling vehicle’s body serves as the chassis and comprises the foot portion of the armored battling vehicle that incorporates the tracks, motor, driver’s situate, and team compartment.

This portrays the lower frame, in spite of the fact that common utilization might incorporate the upper frame to cruel the armored battling vehicle without the turret. The frame serves as a premise for stages on tanks, armored staff carriers, combat building vehicles, etc.

A chassis could be used in a sort of semi-trailer onto which a cargo holder can be mounted for street transport. For commercial vehicles, a rolling chassis comprises a get-together of all the basic parts of a truck without the body being prepared for operation on the street. A car chassis will be diverse from one for commercial vehicles since of the heavier loads and steady work use.

Problems and Solutions for Car Chassis

How to improve rigidity of chassis?

Geometrically speaking, the shape of a triangle results in increased rigidity. Triangles are the lightest, strongest, and most rigid frame structures in nature and construction as they produce rigid chassis systems. No matter if it is a roll bar or a simple strut tower brace, the triangle geometry provides maximum rigidity with the lowest weight.

What is the proper reason behind the use of tubular sections?

The channel segment is best suited for bowing loads. The box segment is nice for both bowing and torsion & the tubular area is sweet for torsion. The outline and body of a car are mounted on the front and raise axles through springs and stun safeguards.

What are the most components of the Chassis?

The wheel suspension accepts a significant part within the vehicle chassis. It sets up the association between the wheels and the vehicle’s body and exchanges all strengths and torques between the wheels and bodywork. The wheel suspension is planned to guarantee secure driving characteristics and the most elevated conceivable comfort.

What is below in the Chassis System?

Into pieces vehicles have three crucial components in the common range: clutch, directing, and suspension. To exchange control from the motor to the wheels, a clutch must be associated with the drive shaft. The final strategy the suspension utilizes retains stun as a result of driving on an unevenly laid surface. The vehicle chassis is a portion of the underside of the vehicle.

Alternatives of Chassis

It is now even possible to have alternative chassis concepts in which all the systems that make up a software-defined vehicle can be brought together in a separate substructure.

These Mobile Chassis Platforms can then be bolted onto a number of vehicles for a variety of purposes since they are equipped with high-performance controllers, Continuous Damping Control, brake systems, steering systems, and electric drives.

Known as skateboard designs, they seem like a throwback to the body-on-frame architecture of old cars. But they actually represent the future. This solution would be an excellent choice for light commercial vehicles utilized in the logistical distribution in autonomous vehicles.

Tips for Chassis

Lubrication

Over time, automobile lubricants can dry out, though they are often well greased and lubricated when cars roll off the assembly line. As a result, the mechanical parts of your vehicle eventually wear out and fail, causing unpleasant noise, vibration, and harshness while driving.

It is easy to lubricate your chassis at home with inexpensive lube and a simple procedure that is easy to follow. Your car will run safely and smoothly if you use some chassis grease or aerosol lubricant.

Wheel Alignment

Winter conditions often cause wheel alignments to be misaligned due to rough roads. Before a long drive or road trip, align the wheels and suspension. That will improve fuel economy and vehicle handling. Furthermore, it prevents tire wear, noise, and vibration, so you can enjoy driving your car more.

An alignment check at a service center is the only way to determine whether your chassis is aligned correctly. It is a good idea to get your vehicle examined in the spring to assess any wear and tear that may have occurred over the winter months.

Rust Prevention

Road salt and the snow and sleet from the winter months cause rust to build upon the underside of your vehicle.  The car’s platform can erode & weak due to other corrosion and rust. It is vital to clean your car regularly to prevent this & you can wax it before the monsoon season. Coating & rust prevention techniques use for added layer protection.

FAQs on Chassis

What is the most common Chassis?

A Monocoque is a shell around a car created using both chassis as a frame in a single structure. This is the most used chassis today as it has many advantages over the other two chassis.

What part of the vehicle is Chassis?

All parts of a vehicle, but those within the body, are considered to be chassis. Each piece of a vehicle’s body is alluded to as its chassis. Wheels, brakes, suspension frameworks, axles, motors are portions of this system.

What is the construction material of producing Chassis?

Ordinarily, the fabric utilized to develop vehicle chassis and outlines is carbon steel, or aluminum combinations to realize a more lightweight development. Within the case of a partitioned chassis, the outline is made up of basic components called the rails or beams.
